The HXFPL Series Wheel Type Compost Turner is a heavy-duty aerobic composting machine designed for deep-trough fermentation in large-scale organic fertilizer plants. Featuring an ultra-wide span (10–30m), high daily processing capacity (500–3000 t/d), and deep turning ability (up to 2.7m), it effectively aerates, flips, and deodorizes livestock manure, municipal sludge, and agricultural waste.
Description
Need Factory Price or Custom Solution?
Get a instant quotation with product catalog within 24 hours.
Get A Quote Now →1. What is Wheel Type Compost Turner?

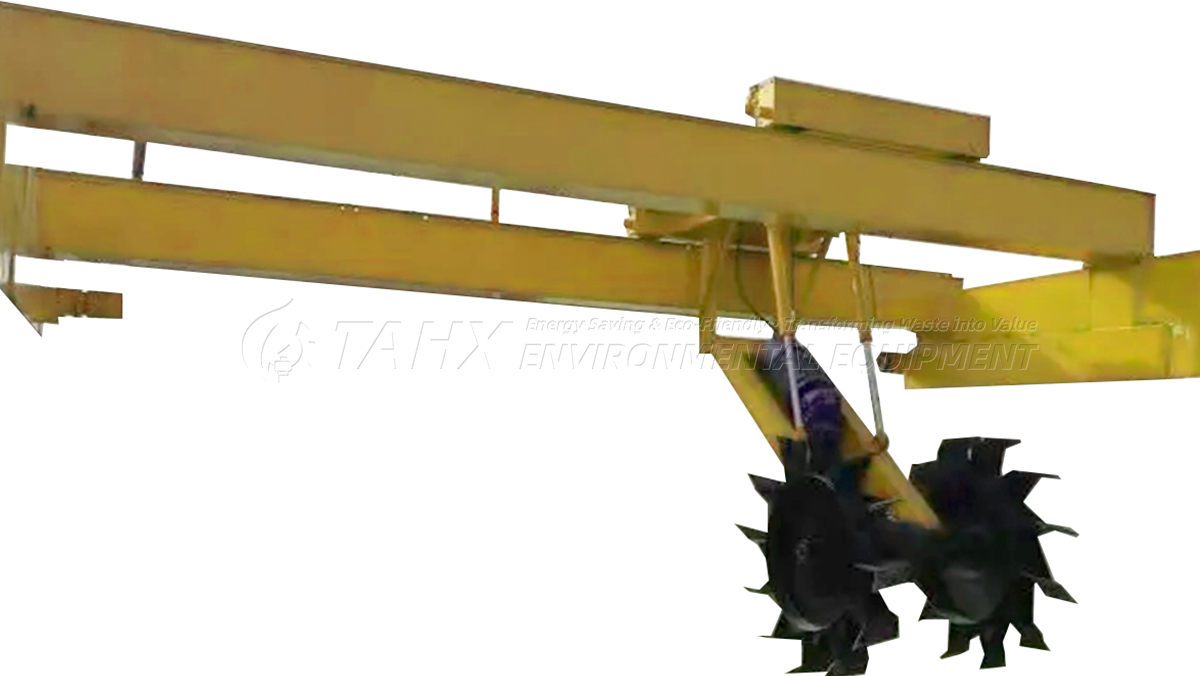

A Wheel Type Compost Turner (Model Series: HXFPL) is a heavy-duty, high-efficiency aerobic composting machine specially engineered for ultra-wide span and deep-trough fermentation in organic fertilizer manufacturing plants and waste processing centers. Equipped with a large-diameter rotating wheel system (1200 mm to 3000 mm), it deeply lifts, aerates, and throws organic materials to accelerate aerobic decomposition and eliminate odor.
2. How does Wheel Type Compost Turner work?

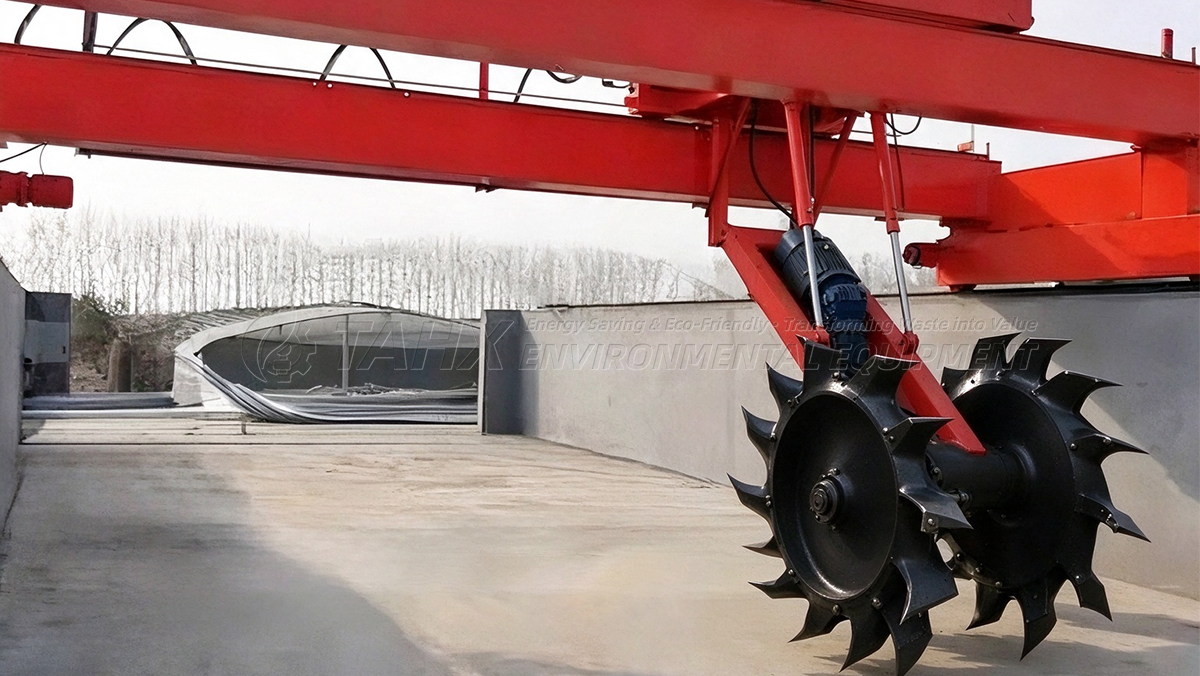

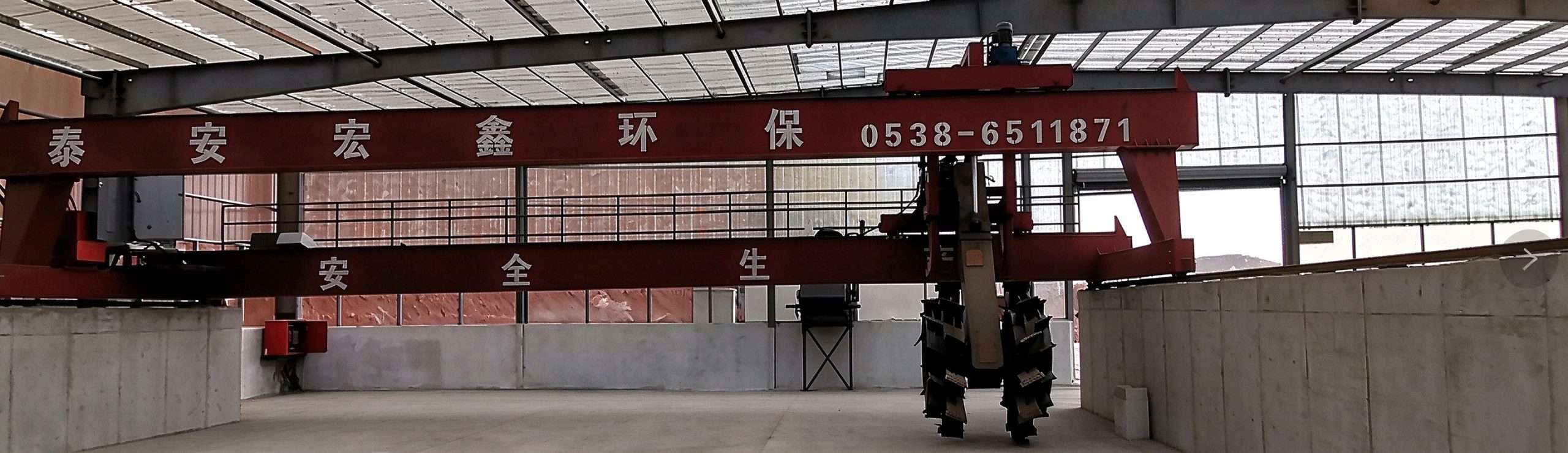

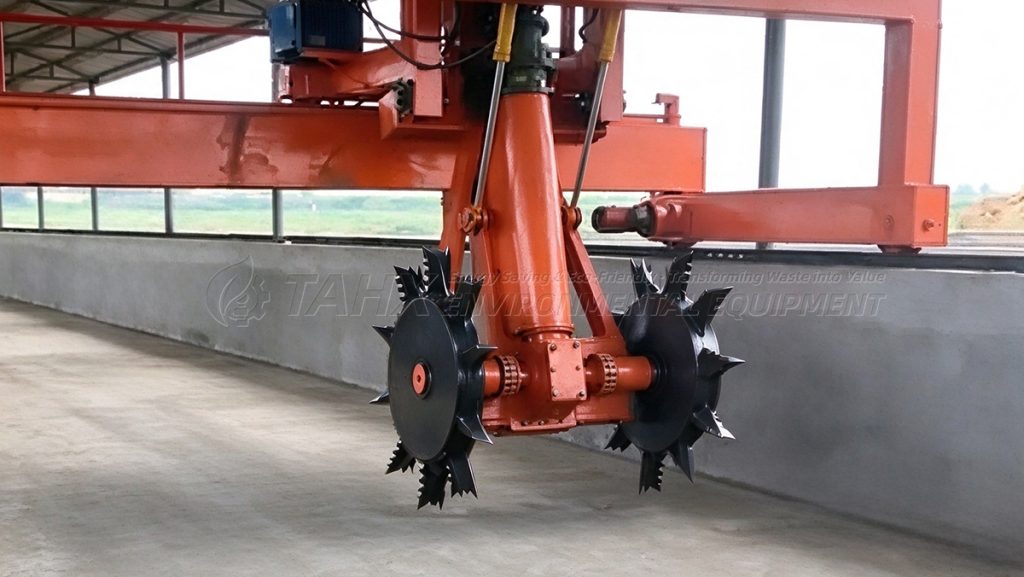

Operating on rails atop fermentation troughs, the machine drives a heavy-duty rotating wheel fitted with wear-resistant buckets to scoop organic materials from the bottom and shift them backward.

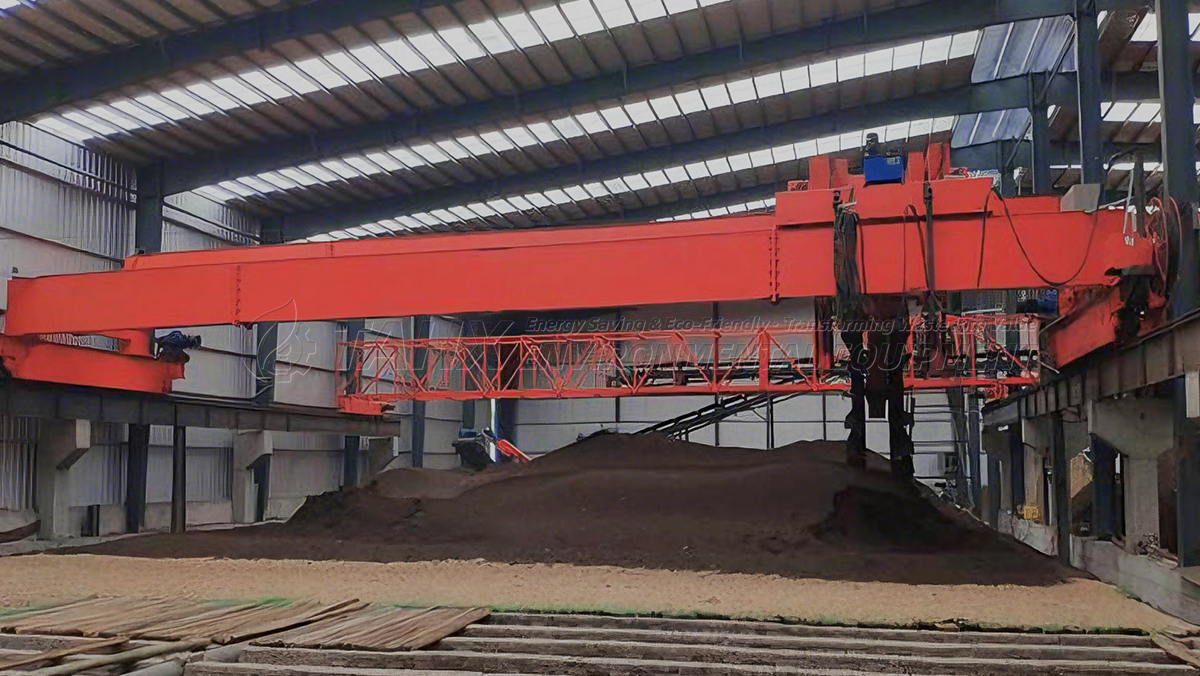

Powered by multi-motor drive units and an independent hydraulic pump station system, it maintains steady travel speeds of 6–15 m/min while handling daily processing volumes from 500 to 3000 tons. Paired with a motorized transfer carriage, a single HXFPL wheel turner can cover multiple parallel fermentation grooves with a span of 10–30 meters, realizing continuous 24/7 fermentation cycles.
3. Advantages of Wheel Type Compost Turner
- Ultra-Wide Turning Span: Easily spans trough widths from 10 to 30 meters, significantly optimizing factory footprint and reducing civil engineering costs.
- Deep Fermentation Depth: Supports precise turning depths from 1000 mm up to 2700 mm for deep-trough fermentation.
- High Daily Processing Capacity: Efficiently handles daily waste volumes between 500 and 3000 tons/day (hourly throughput of 150–400 m³/h).
- Robust Multi-Motor Drive: Features a multi-wheel travel configuration (1.1kW×4 to 3.0kW×6) and dedicated pump station motors (2.2 kW to 5.5 kW) for reliable heavy-duty continuous operation.
4. Application of Wheel Type Compost Turner
- Commercial Organic & Bio-Fertilizer Plants: Ideal for medium-to-large fertilizer facilities requiring high-capacity fermenting troughs.
- Livestock & Poultry Farm Waste Recycling: Large-scale processing of cow, swine, and poultry manure into high-quality bio-organic fertilizer.
- Municipal Sludge & Waste Treatment: Dewatering, deodorizing, and composting urban sewage sludge and solid organic waste.
- Agricultural Residue Utilization: Fermentation of mushroom residue, sugarcane bagasse, and crop straw.
5. Specifications of Wheel Type Compost Turner
| Model | Wheel Diameter (mm) | Wheel Power (kW) | Travel Motor Config | Pump Station Motor (kW) | Turning Depth (mm) | Turning Span (m) | Capacity (m³/h) | Travel Speed (m/min) | Daily Capacity (t/d) | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| HXFPL 1.2 | 1200 | 18.5 | 1.1kW × 4 | 2.2 | 1000 | 10–30 | 150 | 6–15 | 500–800 | Suitable for small-to-medium organic fertilizer plants. |
| HXFPL 1.6 | 1600 | 22 | 1.5kW × 4 | 3.0 | 1400 | 10–30 | 210 | 6–15 | 800–1200 | Compact wheel turner for poultry manure composting. |
| HXFPL 2.0 | 2000 | 30 | 1.5kW × 4 | 3.0 | 1800 | 10–30 | 270 | 6–15 | 1200–1500 | Standard industrial model for waste treatment plants. |
| HXFPL 2.2 | 2200 | 37 | 1.5kW × 4 | 3.0 | 2000 | 10–30 | 300 | 6–15 | 1500–1800 | Deep-trough turning with 2.0m depth capacity. |
| HXFPL 2.4 | 2400 | 45 | 2.2kW × 4 | 4.0 | 2200 | 10–30 | 330 | 6–15 | 1800–2000 | Heavy-duty organic fertilizer production line turner. |
| HXFPL 2.6 | 2600 | 55 | 2.2kW × 6 | 4.0 | 2400 | 10–30 | 360 | 6–15 | 2000–2500 | High-throughput 6-motor drive wheel bucket system. |
| HXFPL 3.0 | 3000 | 75 | 3.0kW × 6 | 5.5 | 2700 | 10–30 | 400 | 6–15 | 2500–3000 | Ultra-large capacity wheel turner for 3000 t/d projects. |
