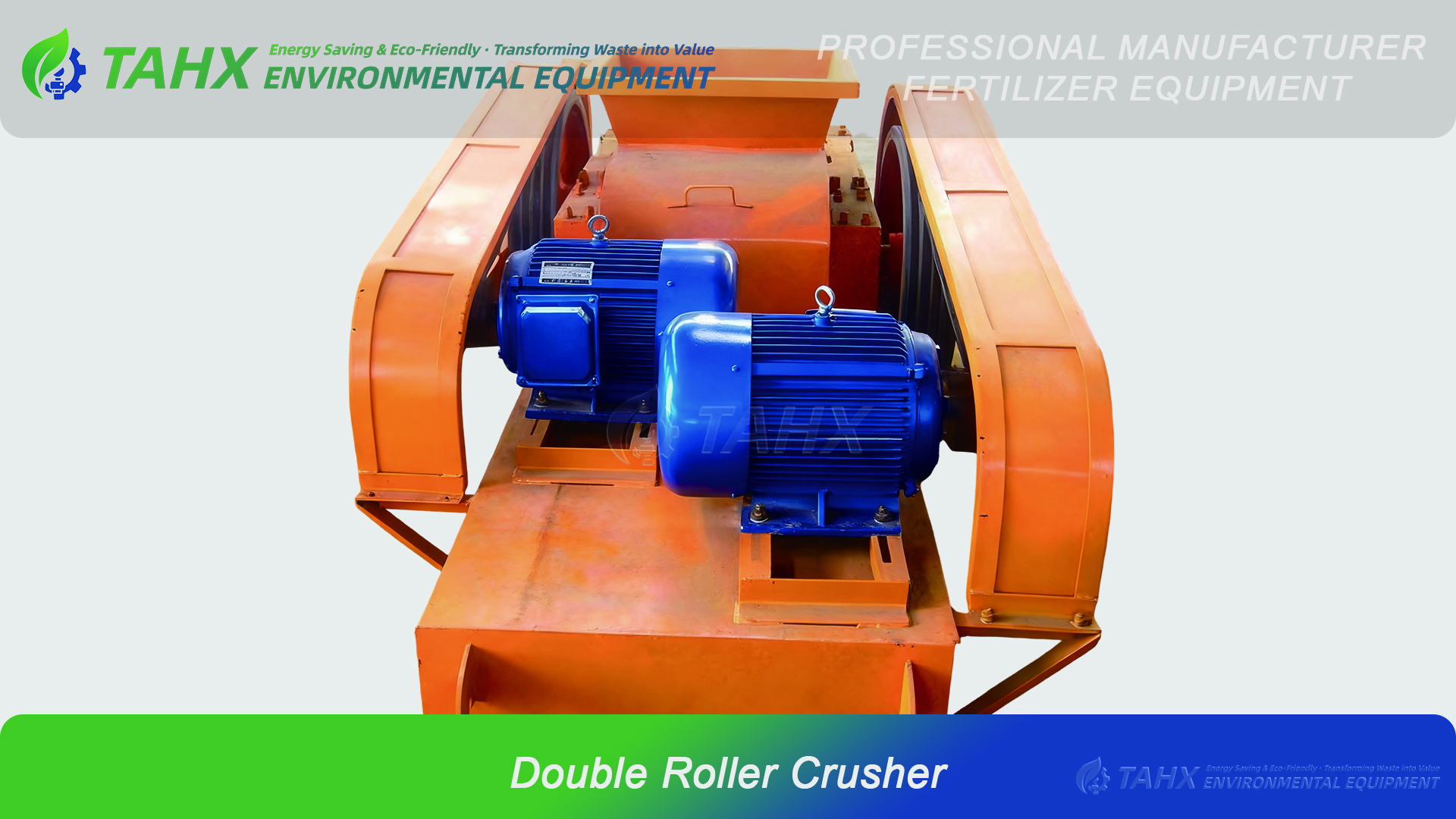

The Double Roller Crusher is a high-precision crushing machine widely used in the fertilizer industry. It consists of two rollers rotating in opposite directions. Unlike hammer mills that use high-speed impact, the Double Roller Crusher uses compressive and shear force to break materials. It is the preferred choice for applications requiring highly uniform particle sizes and minimal dust production.

1. What is a Double Roller Crusher?

The Double Roller Crusher is a high-precision crushing machine widely used in the fertilizer industry. It consists of two rollers rotating in opposite directions. Unlike hammer mills that use high-speed impact, the Double Roller Crusher uses compressive and shear force to break materials. It is the preferred choice for applications requiring highly uniform particle sizes and minimal dust production.

2. How does a Double Roller Crusher work?

The working principle is based on adjustable pressure and gap settings:

• Feeding: Raw materials are fed into the space between the two rollers.

• Compression: As the rollers rotate toward each other, the material is squeezed and crushed by the pressure exerted between the roller surfaces.

• Size Control: The output size is determined by the adjustable gap (distance) between the two rollers. The closer the rollers, the finer the output.

• Safety Mechanism: Modern units are equipped with a spring-loaded or hydraulic pressure system that allows the rollers to retract slightly if an unbreakable foreign object (like a stone) enters, protecting the machine from damage.

3. Advantages of Double Roller Crusher

• Exceptional Uniformity: Provides the most uniform particle size distribution compared to any other crusher, ensuring high-quality fertilizer granules.

• Low Noise & Dust: Low-speed operation produces very little vibration, noise, or airborne dust, creating a cleaner work environment.

• Energy Efficient: Minimal power consumption because it does not rely on high-speed impact to shatter material.

• Easy Adjustment: The gap between rollers can be easily adjusted to meet different production requirements, from coarse crushing to fine grinding.

• Wear-Resistant: The roller surfaces are made from high-hardness, wear-resistant alloy materials, ensuring a long service life even with abrasive materials.

4. Application of Double Roller Crusher

This equipment is indispensable for specific stages of fertilizer production:

• NPK Compound Fertilizer: Used to crush hard chemical fertilizer lumps to a uniform size before final bagging.

• Organic Fertilizer: Ideal for crushing semi-finished compost or hardened materials to a specific size for high-end granulation.

• Crystalline Materials: Excellent for crushing ammonium chloride, potash, and other crystalline fertilizer components.

• Pre-processing: Used as a pre-crusher for materials that need consistent feeding into high-precision granulators.

5. Specifications (Types) of Double Roller Crusher

We offer various configurations based on material hardness and capacity:

• Smooth Roller Type: Best for fine crushing and producing a very smooth, consistent finish. Ideal for NPK and crystalline materials.

• Toothed (Gear) Roller Type: Best for crushing harder, lumpier organic materials, providing a stronger "grabbing" and tearing action.

• Adjustable Capacity Models: Ranging from 2 t/h to 30+ t/h, tailored to your plant's specific scale.

• High-Pressure Series: Reinforced frames and hydraulic pressure systems for heavy-duty, high-hardness mineral additives.

6. Supplier of Double Roller Crusher

Taian Hongxin Environmental Technology Co., Ltd. is your trusted partner for precision fertilizer machinery. With 35 years of manufacturing experience, we specialize in high-durability crushing solutions.

We don't just supply standard machines; we customize the roller material, tooth shape, and pressure settings to perfectly match the chemical properties and hardness of your specific fertilizer materials. Whether you are processing NPK or high-value organic granules, we ensure your production line achieves maximum uniformity with minimum downtime.

Need high-precision crushing for your production line? Contact our technical team today to discuss your material requirements.
