A cyclone dust collector is a dry gas-solid separator that uses centrifugal force to remove dust particles from a dust-laden gas stream. Its core operating principle is this: the dust-laden gas enters the cylindrical body tangentially, creating a high-speed rotating vortex. Due to the difference in mass between the dust particles and the gas, the particles are thrown toward the cylinder wall by centrifugal force. They then fall along the wall due to gravity and are collected in the hopper at the bottom. The purified gas exits through the exhaust pipe in the center of the cylinder, thus completing the gas-solid separation.

I. Features of Cyclone Dust Collectors

Cyclone dust collectors have both advantages and disadvantages.

1. Advantages

• Simple Structure and Low Cost: A cyclone dust collector consists of simple parts like an inlet pipe, an exhaust pipe, a cylindrical body, a conical body, and an ash discharge valve. It has no complex moving parts, making the manufacturing process straightforward. This leads to low material and production costs, requiring minimal initial investment.
• Easy Maintenance: With its simple design, daily maintenance is minimal. You just need to regularly check for equipment wear and ensure the ash discharge system is working properly. This reduces both maintenance costs and effort.
• High Air Volume Capacity: It can handle a large volume of gas, making it suitable for large-scale industrial dust purification needs. Its capacity can be further increased by using multiple units in parallel, without significantly affecting the efficiency or resistance of each unit.
• High Dust Removal Efficiency: For dust particles larger than 5 microns, the removal efficiency can reach 80%-90%. Under normal operating conditions, the centrifugal force on the particles is 5 to 2,500 times that of gravity, making its efficiency significantly higher than other devices like gravity settling chambers.
• Broad Range of Applications:
  • High-Temperature Environments: Can be made from heat-resistant materials, like special alloy steel, or lined with high-temperature materials to operate stably in environments with high-temperature, dust-laden gas, such as in high-temperature kilns.
  • Corrosive Environments: When made from corrosion-resistant materials or treated with anti-corrosion coatings, it can be used to handle corrosive dust gases from chemical production.
  • Various Industries: Widely used in mining, metallurgy, refractory materials, construction, coal, chemical, power generation, woodworking, electronics, and mechanical processing industries.
  • Dry Dust Collection, Good for Recycling: As a dry collection system, it doesn't use water, which avoids the water pollution and sludge disposal issues associated with wet scrubbers. For valuable dust, it can be easily collected for recycling and reuse, improving resource utilization and economic benefits.
  • High Operational Flexibility: Its performance is stable and not limited by the concentration or temperature of the dust-laden gas. It has no special requirements for the physical properties of the dust and can be built with different materials or lined with various wear- and heat-resistant materials to extend its service life based on specific production needs.

2. Disadvantages

• Ineffective on Fine Particles: It is not very effective at removing fine dust particles, generally only working well on large particles. Its removal efficiency is low for particles smaller than 5 microns.
• Prone to Wear if Not Operated Correctly: The high-speed rotation inside the unit makes components, especially the inlet and conical sections, susceptible to abrasive wear from the dust. These parts require regular maintenance and replacement.
• High Resistance: It creates significant resistance to the airflow, causing a certain pressure drop that may require a more powerful fan to overcome, which increases operating costs.

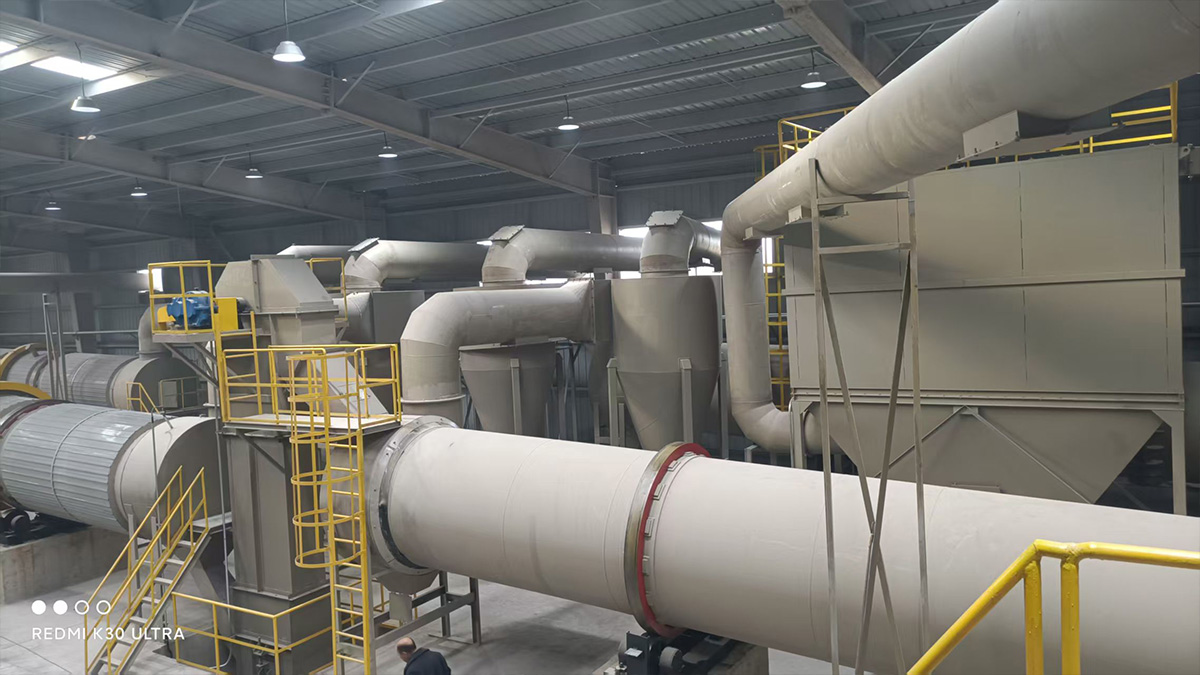

• Limited Ability to Handle Complex Dust: For some types of dust that require fine treatment, a cyclone dust collector may not be sufficient. It is often used in combination with other dust collectors, such as baghouses or electrostatic precipitators, to achieve better results.
• Large Footprint: Some types of cyclone dust collectors require a large installation area, which can be a problem in places with limited space.

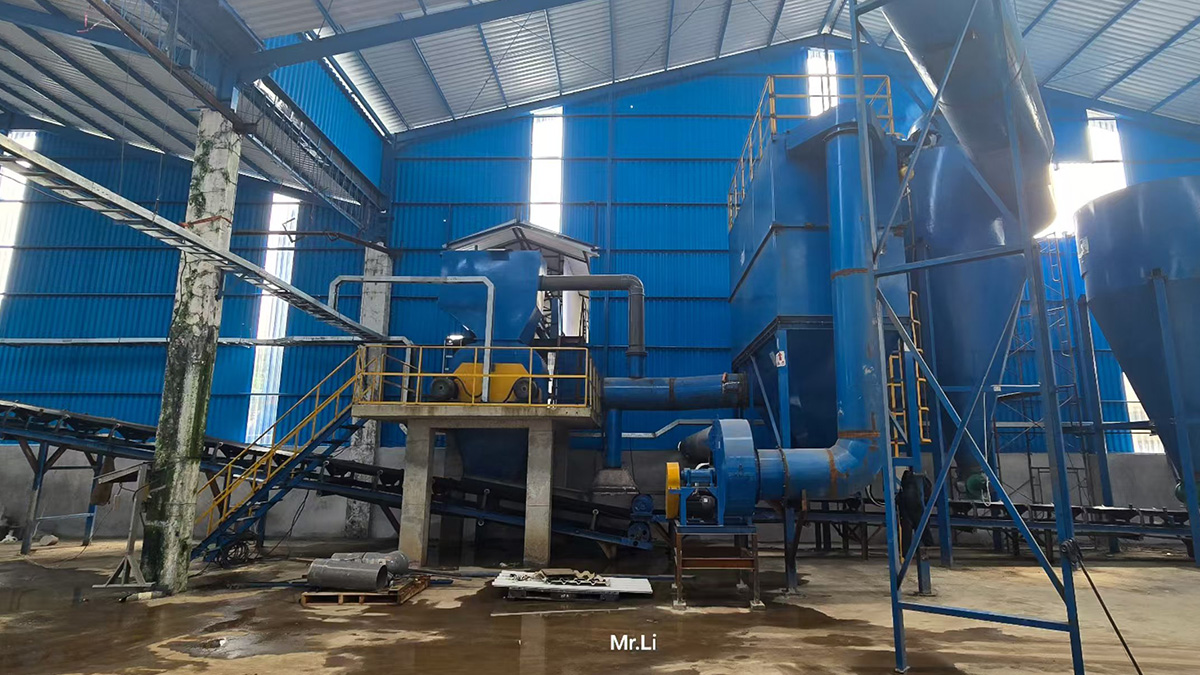

II. Applications of Cyclone Dust Collectors

A cyclone dust collector is a purification device that uses centrifugal force to separate dust particles from a gas stream. Because of its simple structure, low cost, and easy maintenance, it's widely used in many fields.

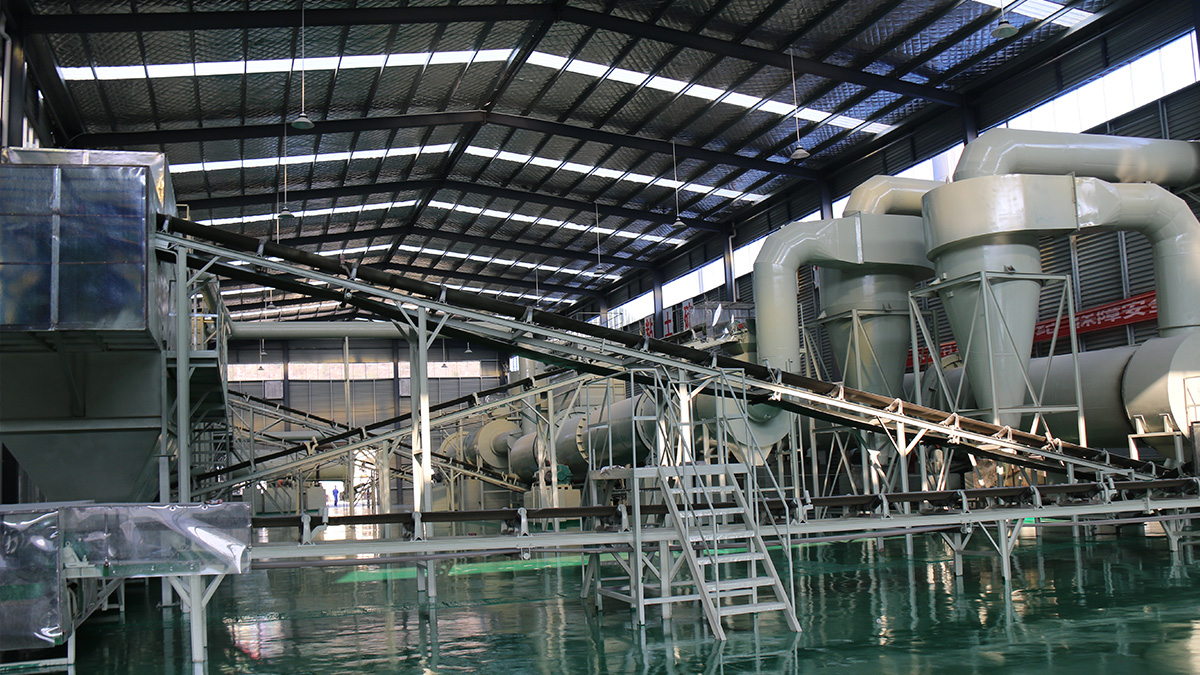

• Industrial Production: They are common in industrial settings. For example, in the machining industry, metal cutting creates a lot of metal dust. A cyclone dust collector can effectively collect this dust, protecting workers' health and allowing for the recovery of valuable metal scraps. In the building materials industry, producing cement, lime, and ceramics releases large amounts of dust. Cyclone dust collectors can be used in these processes to purify the air and reduce environmental pollution. Additionally, in the chemical industry, dust generated during the crushing and screening of raw materials can also be treated with a cyclone dust collector to keep the production environment clean.
• Energy Production: Cyclone dust collectors are also vital in energy production. In coal-fired power plants, burning coal produces a lot of fly ash. A cyclone dust collector can be used as a primary dust removal device to separate most of the fly ash from the flue gas, reducing the load on subsequent dust collection equipment. In biomass power generation, dust from burning biomass fuel can also be purified with a cyclone dust collector.
• Environmental Protection: They are often used to control small pollution sources. For example, the dust-laden exhaust from small boilers and industrial kilns can be treated with a cyclone dust collector to meet environmental emission standards and reduce air pollution. Additionally, in waste treatment plants, dust produced during incineration or stacking can be collected and treated with a cyclone dust collector to improve local air quality.
• Limitations: The collection efficiency is low for fine dust particles (typically smaller than 5 µm). Therefore, in applications requiring high dust removal efficiency, they are often used in combination with other dust collectors (like baghouses or electrostatic precipitators) to achieve better results.

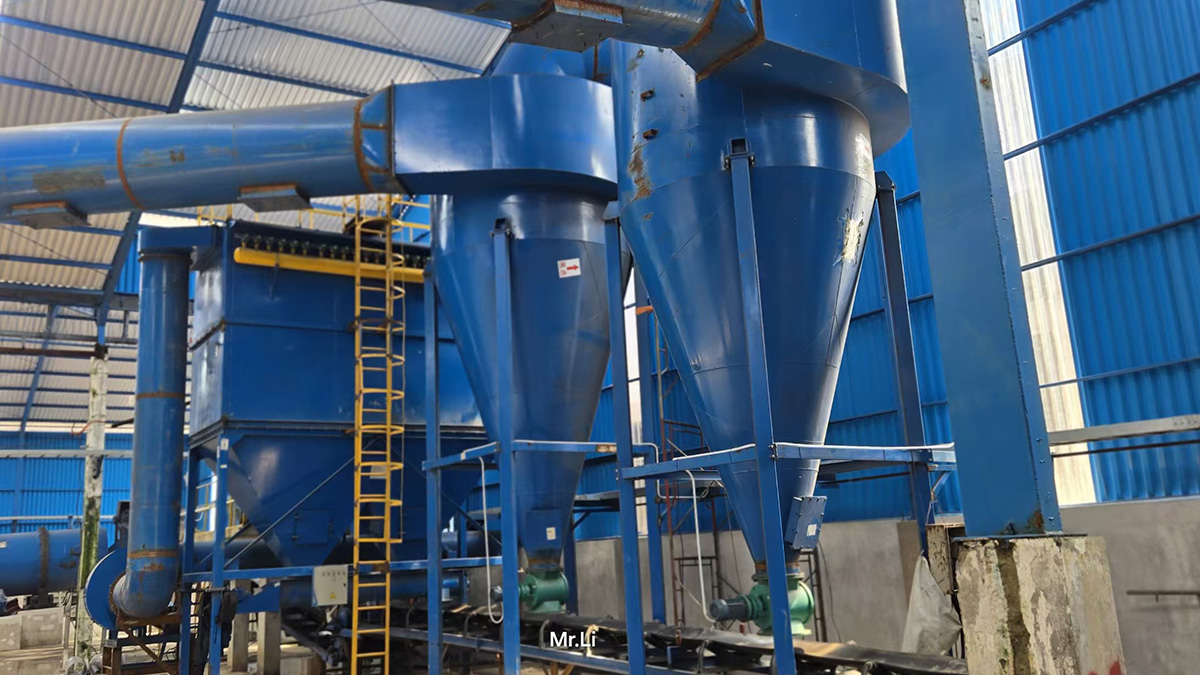

III. Components of a Cyclone Dust Collector

A cyclone dust collector is mainly composed of a few key parts: the inlet pipe, cylindrical body, conical body, exhaust pipe, and hopper, along with other components like the inlet port and ash discharge valve.

• 1. Main Components
  • Inlet Pipe: This is where the dust-laden gas enters. It's usually designed for tangential entry to create a rotating gas flow, which is key for the centrifugal separation of dust.
  • Cylindrical Body: The main part where the dust-laden gas rotates and the dust particles are thrown toward the wall by centrifugal force. The diameter and height of this section are critical for dust removal efficiency and airflow.
  • Conical Body: Located below the cylindrical body, its shape helps the airflow gradually slow down and directs the dust particles down the cone wall into the hopper. The cone's taper and height also impact the dust removal effect.
  • Exhaust Pipe: Located at the top or side of the cyclone, it discharges the purified gas. The pipe's diameter and position must be carefully designed to ensure smooth gas exit and prevent issues like short-circuiting, which would affect efficiency.
  • Hopper: Located at the bottom of the conical section, it collects the separated dust particles. It must have sufficient capacity to reduce how often the ash needs to be discharged and ensure a smooth flow to prevent excessive dust buildup.
• 2. Other Components
  • Inlet Port: A crucial component for creating the rotating airflow. Its design (shape, size, angle) directly affects dust removal efficiency and pressure drop. Common types include tangential and volute inlets.
  • Ash Discharge Valve: Installed at the bottom of the hopper to periodically release the collected dust. It must have a good seal to prevent gas leaks and effectively discharge dust in a timely manner to prevent the hopper from overflowing.
  • Guide Vanes: In some cyclone dust collectors, especially in the ceramic cyclones of multi-tube units, guide vanes are installed. Their purpose is to guide the gas from a straight line into a circular motion, enhancing the centrifugal effect and improving efficiency.
  • Casing: Typically made of steel or other materials, it serves as the external support and protective structure. It holds and supports all the internal components and must be strong and well-sealed to withstand operating pressure and prevent gas leaks.

IV. How to Choose a Cyclone Dust Collector

Choosing the right cyclone dust collector requires a careful look at several factors to ensure it meets your specific dust removal needs efficiently and reliably.

• 1. Determine the Required Air Volume: Air volume capacity is the volume of dust-laden gas the collector can handle per unit of time. It must match the actual amount of gas produced. If the chosen collector's capacity is too low, the gas won't be fully treated, leading to poor dust removal and some dust being released. If the capacity is too high, it will waste energy and increase operating costs. So, you should determine the right air volume based on your production process, allowing for a safety margin.
• 2. Understand the Dust Properties: The dust's density, particle size distribution, moisture content, and stickiness all affect the choice and performance of the cyclone. For denser and coarser dust, the separation efficiency is higher because these particles are more easily flung against the wall by centrifugal force. For finer dust (e.g., smaller than 5 microns), the efficiency is relatively low, and you may need to use it with other equipment. If the dust is wet or sticky, it can easily clump and clog the collector. In this case, you should choose a unit with an anti-clogging design or pre-treat the dust to reduce its moisture and stickiness.
• 3. Consider the Required Separation Efficiency: Different industries and situations have different standards for dust emissions. This determines the required separation efficiency. Efficiency is the ratio of dust captured to the total dust that enters the collector. When choosing, you must ensure the selected cyclone can meet all relevant environmental standards and your production requirements. Generally, efficiency improves as the cylinder diameter decreases and the cone length increases, but this also increases the system's resistance.
• 4. Pay Attention to Pressure Drop: Pressure drop is the pressure loss that occurs as the gas flows through the cyclone. It directly affects the fan's energy consumption. A large pressure drop increases the fan's power usage and raises operating costs. When choosing, try to find a cyclone with lower pressure drop while still meeting efficiency requirements. Factors affecting pressure drop include the collector's design, inlet air velocity, and dust concentration. Typically, an inlet velocity between 12 and 20 m/s offers a good balance between efficiency and pressure drop.
• 5. Choose the Right Structural Type: Cyclone dust collectors come in various designs, such as single-tube, multi-tube, and bypass types. The single-tube type has a simple structure and low cost, making it suitable for smaller air volumes. The multi-tube type consists of several small-diameter tubes combined; it has a large capacity and higher efficiency, ideal for large-scale operations. The bypass type uses a bypass channel to reduce the interference of the upward swirling airflow, improving its efficiency for fine dust. You should choose the right design based on your required air volume, dust properties, and available installation space.
• 6. Consider Installation and Maintenance: The installation site for the cyclone must have enough space and allow for smooth connections to the pipes to minimize airflow resistance. It also needs to be easily accessible for routine maintenance and inspections, such as regularly cleaning out dust and checking for wear. If the space is tight or access is limited, you should choose a compact and easy-to-maintain model.

In short, when choosing a cyclone dust collector, you need to conduct a thorough analysis and comparison of multiple factors—including air volume, dust properties, separation efficiency, pressure drop, structural type, and installation and maintenance conditions—to select the best equipment for your specific needs.

V. Price of Cyclone Dust Collectors

The price is determined by the customer's required product specifications, materials, and production capacity. Please contact our sales team for a specific quote.
