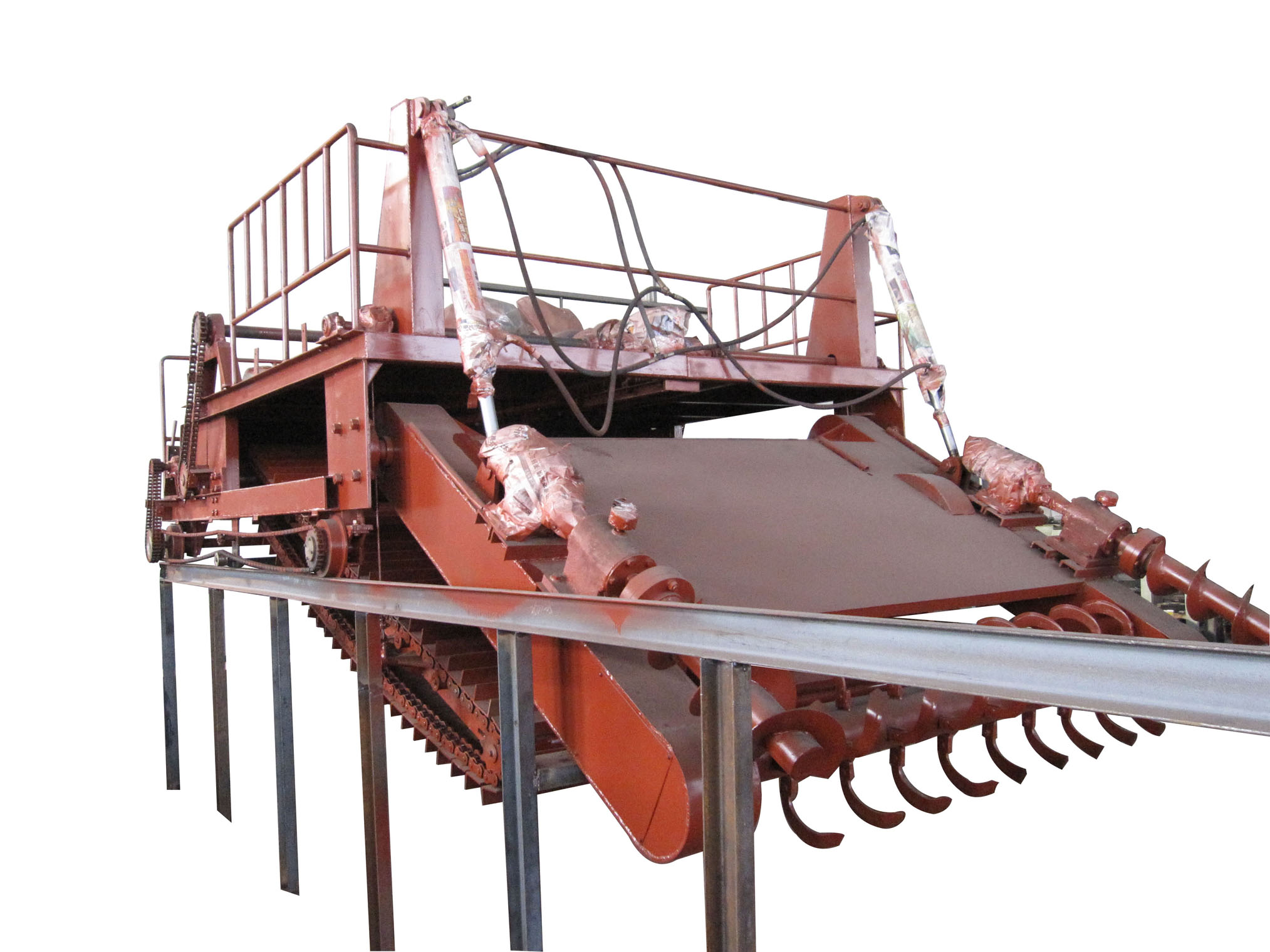

I. Chain Plate Type Compost Turner: An Efficient Solution for Deep Aerobic Composting

The Chain Plate Type Compost Turning Machine is ideally suited for the deep aerobic composting of organic solid waste, such as livestock and poultry manure, sludge, and garbage. This machine operates along the tracks of the fermentation tank. Its efficient turning operation is conducive to accelerating the fermentation and maturation of materials in the fermentation tank, effectively reducing moisture, and ultimately improving the quality of the compost.

II. Working Principle and Variable Frequency Speed Regulation System

The walking system of this Chain Plate Compost Turner adopts variable frequency speed regulation. This provides good adaptability to different materials and ensures smooth operation and high turning efficiency. It is specifically designed for deep tank operations.

• Efficiency and Cycle Reduction: It effectively shortens the fermentation cycle, significantly improving production efficiency and product quality.
• Adaptability: The adoption of a variable frequency speed regulation walking system allows it to well adapt to changes in working load. The walking speed can be flexibly adjusted according to the resistance of the material, making the equipment more adaptable and flexible.
• Multi-Tank Capability: Optional transfer vehicles (tank changing unit) can be equipped to enable multi-tank equipment operation. Under the condition that the equipment's capacity permits, only additional fermentation tanks need to be built to expand the production scale, thereby enhancing the equipment's utilization value.

III. Key Advantages of the Chain Plate Compost Turning Machine

The design and engineering of this equipment provide substantial operational benefits:

1. Energy Efficiency: It adopts a chain drive and rolling support pallet structure, resulting in low flipping resistance, which saves electricity and energy, and is perfectly suitable for deep trench operations.
2. System Protection: The flipping support plate is equipped with a flexible tensioning and elastic shock absorption system to protect the transmission system and the operation of working components.
3. Crushing and Oxygenation: The flipping and throwing support plate is equipped with 390 detachable wear-resistant curved tooth knives, which have a strong crushing capacity and provide a good oxygenation effect on the material pile.
4. Moisture Reduction: When flipping, the materials stay on the pallet for a long time, are scattered at a high position, have sufficient contact with the air, and are prone to moisture reduction.
5. Mobility and Flexibility: The flipping operation at any position within the tank can be achieved through lateral and longitudinal displacement, which is highly mobile and flexible.
6. Hydraulic Control: The lifting and lowering of the flipping working components is controlled by a hydraulic system, which operates flexibly and quickly.
7. Remote Control: The machine can be remotely controlled from a distance to move forward, sideways, flip over, and quickly backward, etc., improving the operating environment.

Optional Accessories:

Optional accessories include a trough-type raw material spreading machine, an automatic discharging device, a solar fermentation chamber, and a ventilation aeration system, etc.

• Equipped with a transfer machine for slot changing, one turning machine can operate multiple slots, saving investment.

IV. Application Scope: Ideal for Various Organic Solid Wastes

The Chain Plate Type Compost Turning Machine is suitable for large-scale continuous deep aerobic composting of a wide range of organic solid wastes:

• Livestock manure
• Sludge
• Filter mud
• Garbage
• Distiller's grains, medicinal residues, biogas residue, cassava residue, furfural residue
• Humic acid, fruit peels, and garden waste

Its powerful turning operation facilitates the acceleration of material fermentation and maturation in the tank, leading to moisture reduction and a significant improvement in compost quality.

V. Equipment Structure: Turning Unit and Tank Changing Unit

This Chain Plate Type Compost Turner machine is functionally divided into two main units:

1. The Turning Unit: This unit is primarily responsible for moving and turning back and forth inside the fermentation tank.
2. The Tank Changing Unit (Transfer Unit): This unit is responsible for moving the turning unit back and forth between different fermentation tanks, facilitating the multi-tank operation described above.
